Key Features

   Support Toyota TIS OEM diagnostic software
   Supports Diagnostics and Active tests
   Supports most 1996 and newer vehic es with OBDII/D C3 diagnostics
   Easy to install   and carry
   Update firmware via internet
   Cost-effective
   High performance with ARM chip inside
   Status LED

Supported Protoco s
   K- Line ISO 9141
   KWP 2000 ISO 14230-4
   CAN 2.0B ISO 11898
   CAN ISO 15765-4

Specifications
   Operating Temperature: -20 to 70 C ( -4 to 158 F )
   Storage Temperature: -40 to 85 C ( -40 to 185 F )
   Diagnostic Interface: 16 PIN
   USB Interface      : USB 2.0
   Power: DC 5 V - 36 V
   Consumption: 0.3 W
   Dimensions: 76 mm(2.99) x 43 mm(1.69)W x 19 mm(0.75)H
   Net Weight: 62 g
   Gross Weight: 103 g

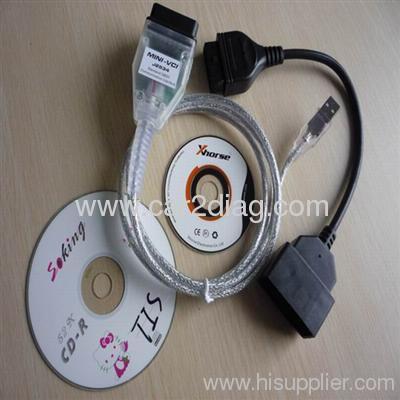

Accessories Included
   Driver CD: Includes user manua , drivers, and etc.
